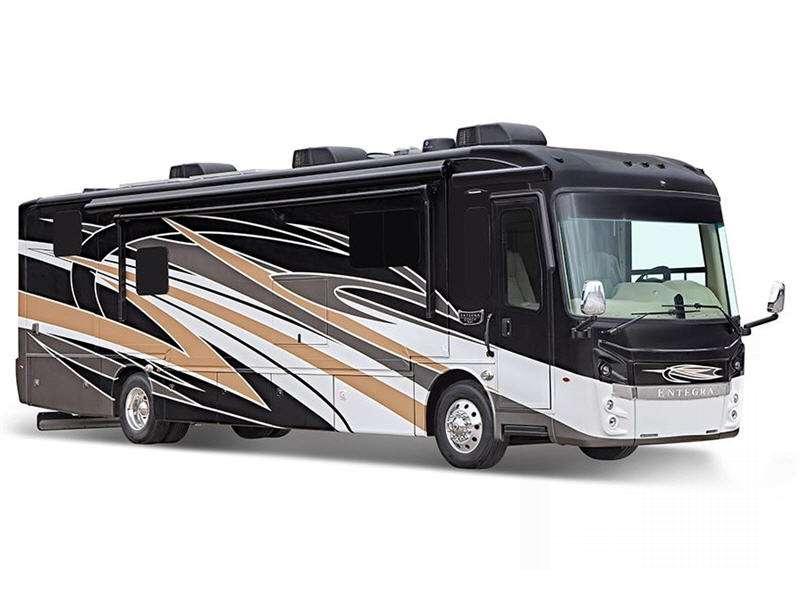

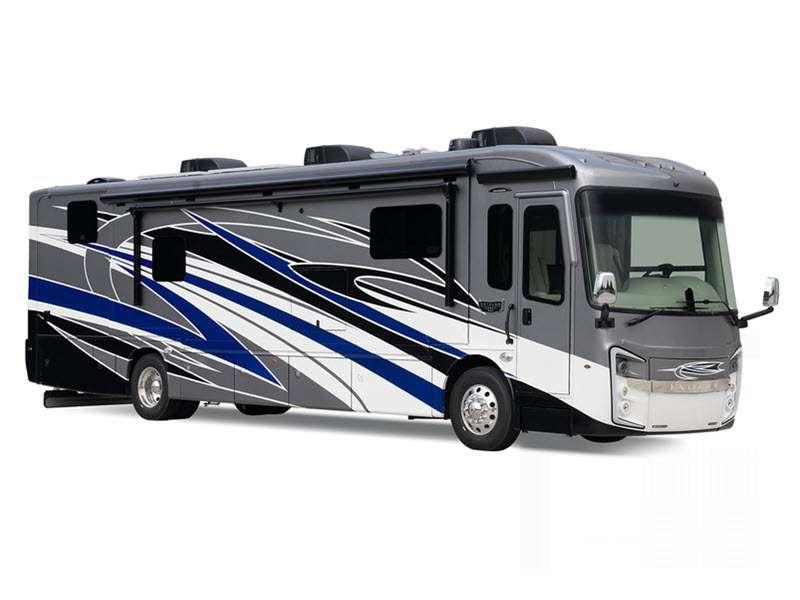

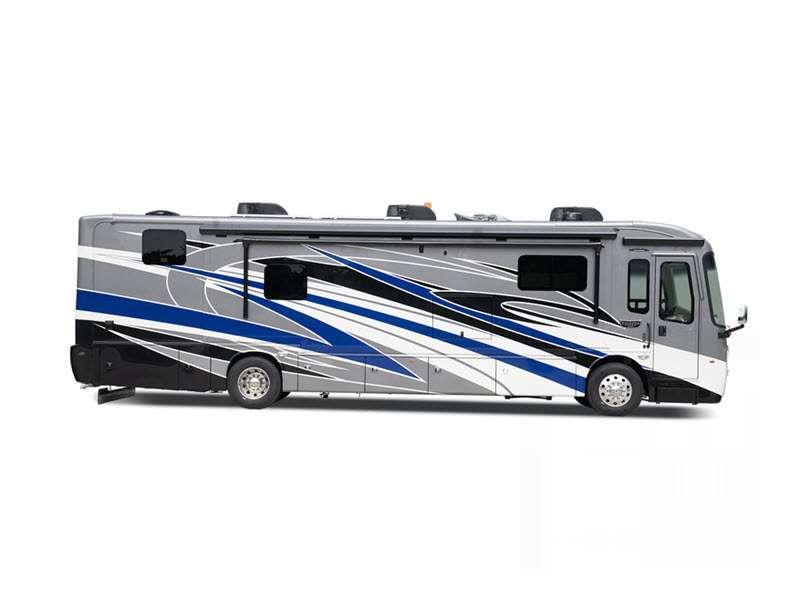

Take a look at the Reatta Class A diesel motorhomes, Entegra Coach's entry point into the diesel pusher market. The X-Bridge bracing welded into the chassis frame provides a strong foundation, and the 360HP engine will power your adventures both near and far!



The independent front suspension will eliminate road shock, and the Equalizer hydraulic automatic coach leveling provides hassle-free set up. You will appreciate having the largest windshield in the industry to give you great outdoor views as you travel, and there is an Xite 360° HD digital camera system to make maneuvering your coach easier than ever. It won't be hard to find comfort inside with solid surface countertops, genuine Italian leather furniture, a pillowtop mattress with tilt function, and so much more!



It's time you hit the road in comfort and style with an Entegra Coach Reatta Class A diesel motorhome!

  • Reatta 37K

    Reatta 37K Floorplan Image

    Take a Virtual Tour

    Entegra Coach Reatta Class A diesel motorhome 37K highlights: Rear Private ... more about Reatta 37K

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Slides 4
    Length 37 ft 10 in
    Ext Width 8 ft 5 in
    Ext Height 12 ft 10 in
    Int Height 7 ft
    Interior Color Glacier, Summit, Valley

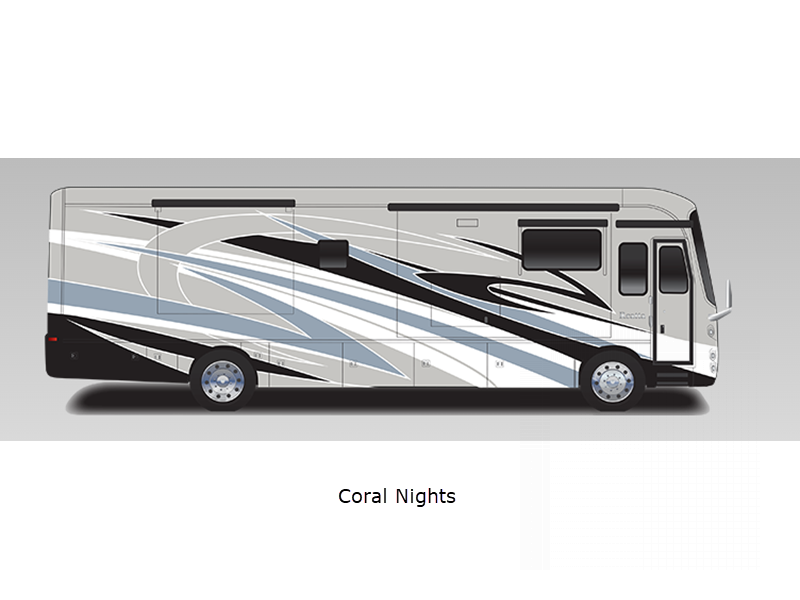

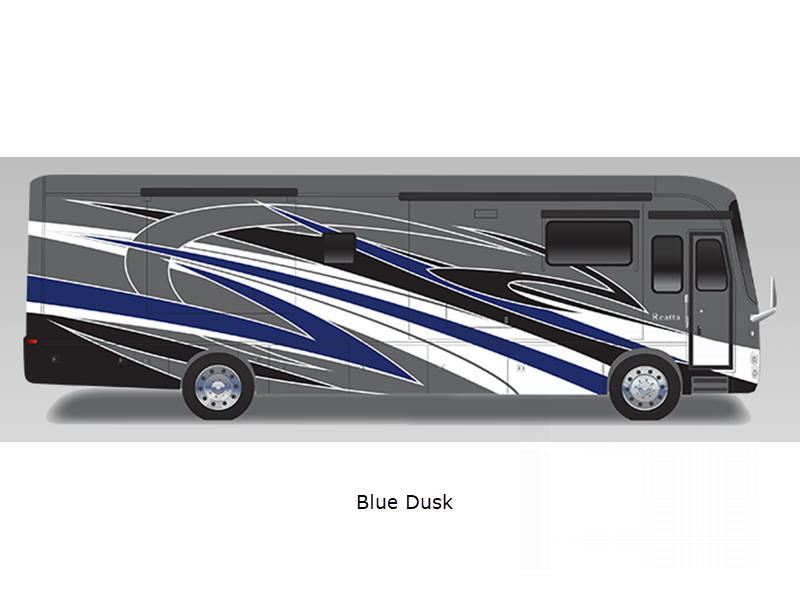

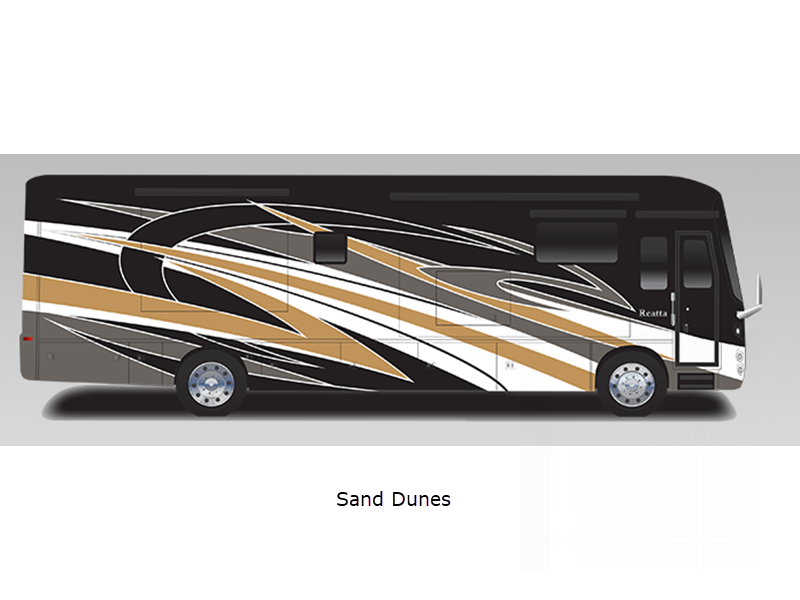

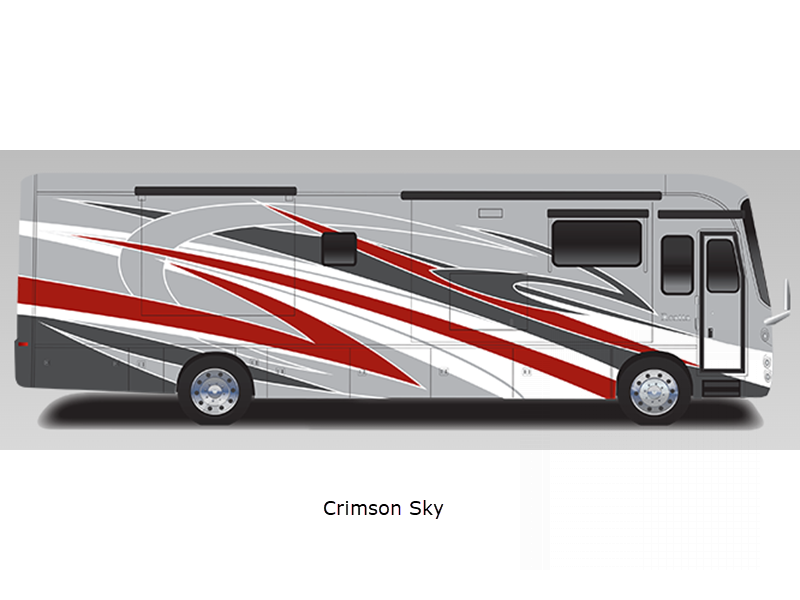

    Exterior Color Blue Dusk, Coral Nights, Crimson Sky, Sand Dunes
    Hitch Weight 10000 lbs
    GVWR 34320 lbs
    Fresh Water Capacity 100 gals
    Grey Water Capacity 62 gals
    Black Water Capacity 41 gals
    Tire Size 275/80R 22.5"
    Furnace BTU 35000 btu
    Generator Onan 8,000-watt diesel
    Fuel Type Diesel
    Engine Cummins B6.7
    Chassis Spartan K1 Raised Rail
    Horsepower 360 hp
    Fuel Capacity 100 gals
    Wheelbase 236 in
    Available Beds King Power Head Lift
    Torque 800 ft-lb
    Refrigerator Type Stainless Steel Residential
    Convection Cooking Yes
    Cooktop Burners 2
    Shower Size 36" x 36"
    Number of Awnings 1
    Axle Weight Front 14320 lbs
    Axle Weight Rear 20000 lbs
    LP Tank Capacity 24.5 gals
    Water Heater Type Tankless
    AC BTU 30000 btu
    TV Info LR 50" Samsung 4K UHD Smart TV, BR 32" Samsung LED 1080P Smart TV, Ext. 43" Samsung 4K UHD Smart TV
    Awning Info Carefree Power Patio w/LED Lights
    Washer/Dryer Available Yes
    Gross Combined Weight 44320 lbs
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

  • Reatta 39BH

    Reatta 39BH Floorplan Image

    Take a Virtual Tour

    Entegra Coach Reatta Class A diesel motorhome 39BH highlights: Bath and a Half ... more about Reatta 39BH

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 7
    Slides 3
    Length 39 ft 11 in
    Ext Width 8 ft 5 in
    Ext Height 12 ft 10 in
    Int Height 7 ft
    Interior Color Glacier, Summit, Valley
    Exterior Color Blue Dusk, Coral Nights, Crimson Sky, Sand Dunes
    Hitch Weight 10000 lbs
    GVWR 36320 lbs
    Fresh Water Capacity 100 gals
    Grey Water Capacity 62 gals
    Black Water Capacity 41 gals
    Tire Size 275/80R 22.5"
    Furnace BTU 50000 btu
    Generator Onan 8,000-watt diesel
    Fuel Type Diesel
    Engine Cummins B6.7
    Chassis Spartan K1 Raised-Rail
    Horsepower 360 hp
    Fuel Capacity 100 gals
    Wheelbase 261 in
    Number Of Bunks 2
    Available Beds King Power Head Lift
    Torque 800 ft-lb
    Refrigerator Type Stainless Steel Residential
    Convection Cooking Yes
    Cooktop Burners 2
    Shower Size 30" x 40"
    Number of Awnings 1
    Axle Weight Front 14320 lbs
    Axle Weight Rear 22000 lbs
    LP Tank Capacity 24.5 gals
    Water Heater Type Tankless
    AC BTU 45000 btu
    TV Info LR 50" Samsung 4K UHD Smart TV, BR 32" LED Smart TV, Ext. 43" Samsung 4K UHD Smart TV
    Awning Info Carefree Power Patio w/ LED Lights
    Washer/Dryer Available Yes
    Gross Combined Weight 46320 lbs
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

  • Reatta 39T2

    Reatta 39T2 Floorplan Image

    Take a Virtual Tour

    Entegra Coach Reatta Class A diesel motorhome 39T2 highlights: Bath and a Half ... more about Reatta 39T2

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Slides 3
    Length 39 ft 11 in
    Ext Width 8 ft 5 in
    Ext Height 12 ft 10 in
    Int Height 7 ft
    Interior Color Glacier, Summit, Valley
    Exterior Color Blue Dusk, Coral Nights, Crimson Sky, Sand Dunes
    Hitch Weight 10000 lbs
    GVWR 36320 lbs
    Fresh Water Capacity 100 gals
    Grey Water Capacity 62 gals
    Black Water Capacity 41 gals
    Tire Size 275/80R 22.5"
    Furnace BTU 50000 btu
    Generator Onan 8,000-watt diesel
    Fuel Type Diesel
    Engine Cummins B6.7
    Chassis Spartan K1
    Horsepower 360 hp
    Fuel Capacity 100 gals
    Wheelbase 261 in
    Available Beds King Power Head Lift
    Torque 800 ft-lb
    Refrigerator Type Stainless Steel Residential
    Convection Cooking Yes
    Cooktop Burners 2
    Shower Size 30" x 40"
    Number of Awnings 1
    Axle Weight Front 14320 lbs
    Axle Weight Rear 22000 lbs
    LP Tank Capacity 24.5 gals
    Water Heater Type Tankless
    AC BTU 45000 btu
    TV Info LR 50" Samsung 4K UHD Smart TV, BR 32" LED Smart TV, Ext. 43" Samsung 4K UHD Smart TV
    Awning Info Carefree Power Patio w/LED Lights
    Washer/Dryer Available Yes
    Gross Combined Weight 46320 lbs
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

Reatta Features:

Standard Features (2025)



Chassis

  • Equalizer hydraulic automatic coach leveling
  • Wireless tire pressure monitoring system (TPMS) with temperature monitoring
  • Spartan® K1 raised-rail chassis
  • Cummins® B6.7 turbocharged 360-HP engine with 800-lb. ft. torque at 1,800 RPM
  • Allison® 3,000 MH 6-speed transmission
  • Rear-mounted radiator
  • 170-amp alternator
  • 750-watt engine block heater
  • Variable geometry turbo (VGT) engine brake
  • Independent front air suspension (IFS) front axle - 14,320 lb.
  • Rear axle - 20,000 lb. (37K) 22,000 lb. (39BH/39T2)
  • 4.88 rear axle ratio
  • Michelin® 275/80R 22.5” tires
  • Bilstein® 46mm shocks
  • Remote air connection
  • (2) 12V chassis batteries
  • 100-gal. fuel tank
  • 10-gal. DEF tank
  • Spartan® Safehaul tow vehicle air brake system
  • 10,000-lb. hitch with 7-pin plug

Construction

  • Roof: One-piece fiberglass with 3/8 in. plywood decking, 4 in. arched aluminum trusses, insulation and reflective Flexfoil® (R-24)
  • Sidewalls: Vacuum-bonded, high-gloss gelcoat with R-8 bead-foam insulation
  • Floors: Vacuum-bonded layers of Darco underbelly, a welded
  • aluminum frame, R-9 bead-foam insulation, 3/8 in. Structurwood® and 1/4 in. plywood
  • X-Bridge™ bracing welded into chassis frame
  • Electric-powered slideout rooms

Heat, AC, Water & Power

  • Onan® 8,000W diesel generator, with automatic start, on slide-out tray
  • 2,000W pure sine wave inverter with 100 amp battery charger
  • (3) 15,000 BTU A/C units with heat pumps [(2) 15,000 BTU units with heat pumps on 37K]

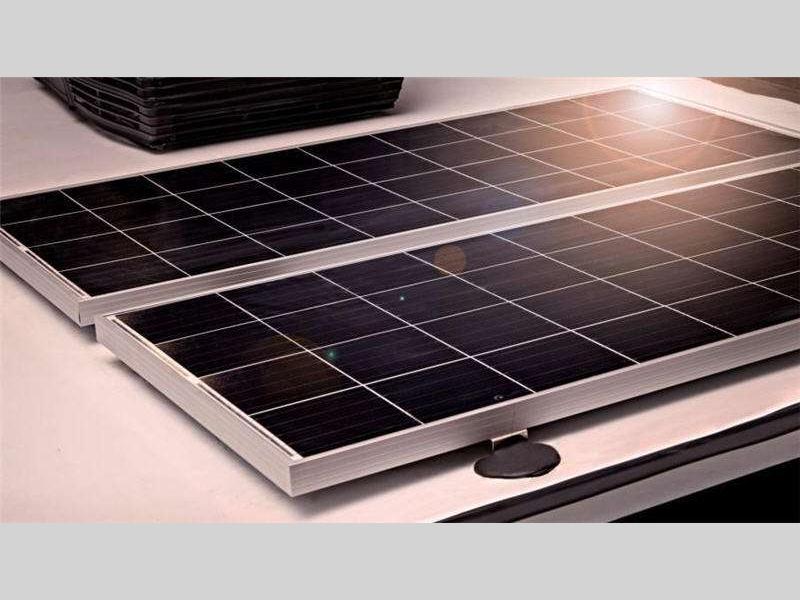

  • (2) 200W Go Power!® solar panels
  • (2) L16 AGM batteries (6V/390 amp hrs. ea.)
  • 50 amp power cord
  • Automatic transfer switch with surge protection
  • 35,000 BTU furnace (37K) / (1) 20,000 and (1) 30,000 (39BH, 39T2)
  • Tankless gas water heater
  • 24.5 gal. propane tank
  • Sani-Con® macerator holding tank dump system with manual gate valves and manual backup
  • Black tank flush; Grey tank flush
  • City and tank water filtration system
  • Hot and cold water hook-up in front cap area with 30 ft. quick-disconnect hose
  • Heated basement storage

Exterior

  • Winegard Connect 2.0 Wi-Fi/4G antenna
  • Carefree® power entrance door awning with LED lights
  • Exterior 43 in. Samsung® 4K UHD Smart TV with tilt, swivel, and extend adjustment; Exterior JBL® radio and speakers with USB port and receptacle
  • Insulated front and rear caps (R-24)
  • Exterior utility center
  • Carefree® power patio awning with LED lights
  • Carefree® slideout awnings
  • Carefree® window awnings
  • Frameless, dual-pane, tinted, safety-glass windows
  • Grab handle and keypad system for keyless entry
  • LED accent lights under all slideout rooms
  • Heated, remote-control, side-view mirrors with integrated cameras
  • Diamond Shield™ front protective film mask

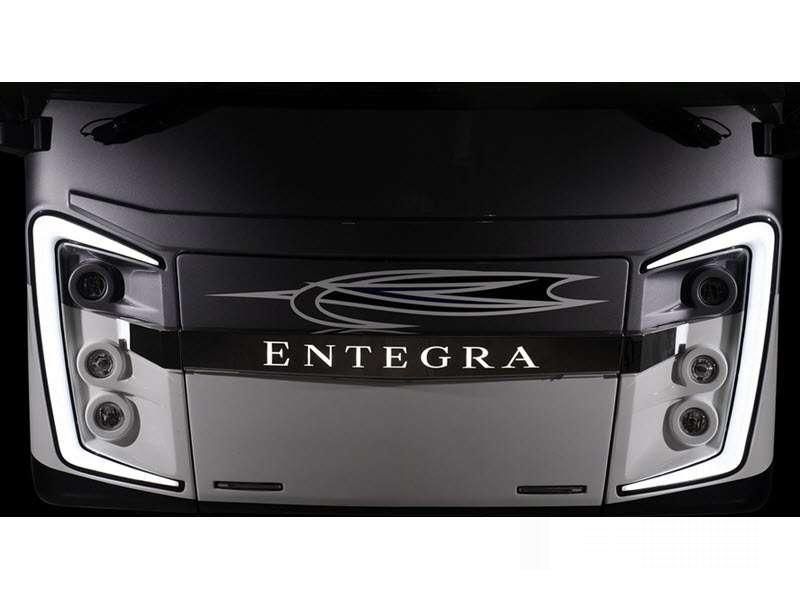

  • LED high and low beam headlights
  • Halogen fog lights
  • Automatic daytime running lights
  • LED marker lights, turn lights, license plate light, third brake light, accent lights and docking lights
  • Porch light
  • Mudflap with chrome “Entegra Coach” nameplate
  • Winegard® TRAV’LER satellite dish DIRECTV® - standard with USA option
  • Winegard® TRAV’LER Pro satellite dish Shaw TV - standard with CSA option
  • Slideout basement storage tray
  • Sikkens custom full-body paint
  • Removable screen on entry door

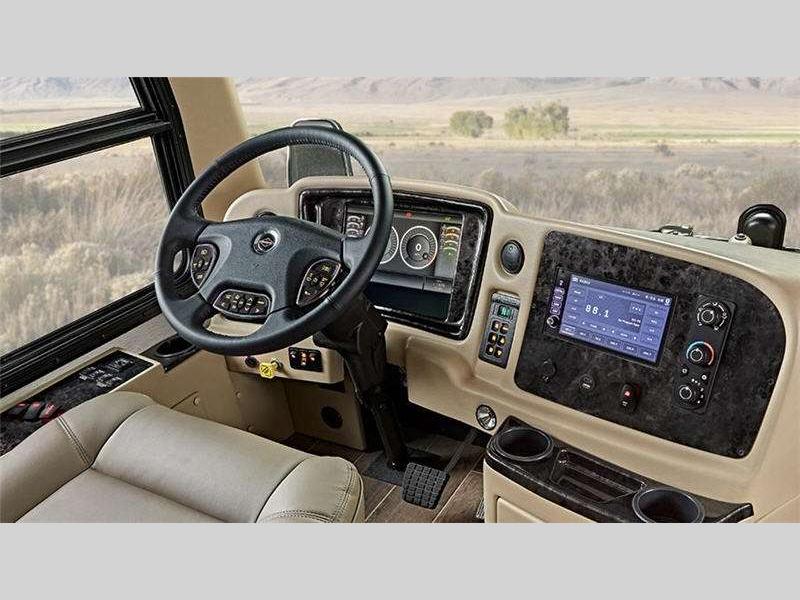

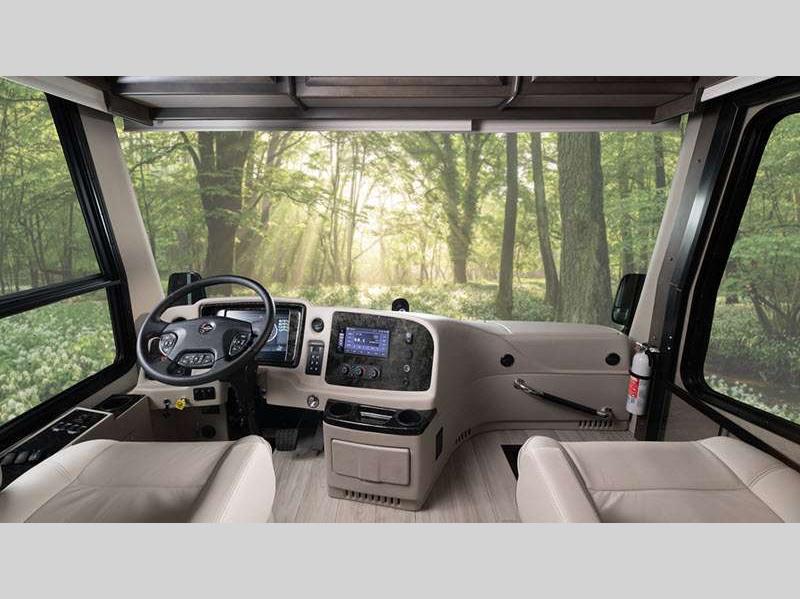

Cockpit

  • Xite™ 360° HD digital camera system
  • Valid™ 15 in. digital dash with quad core graphics processor, on-board diagnostics, selector knob and ability to display traditional instrument cluster, 360° camera system or GPS navigation
  • Xite™ XSG4 infotainment system with 9 in. touchscreen, iGO navigation, Bluetooth®, Sirius XM™ and AM/FM tuner, integrated camera control and house mode whole-coach audio distribution
  • Leather steering wheel with integrated controls for screen selection, instrument cluster navigation, media source selection, cruise, wipers and Bluetooth® phone functionality
  • Manual tilt and telescoping steering column
  • Ultra-Vision® one-piece wrap-around tinted windshield; Rain-sensing windshield wipers
  • Leather driver and passenger seats with powered 6-way adjustment and power recline
  • Powered flush stepwell cover
  • Powered adjustable brake and accelerator pedals
  • Powered front sun visors and privacy shades

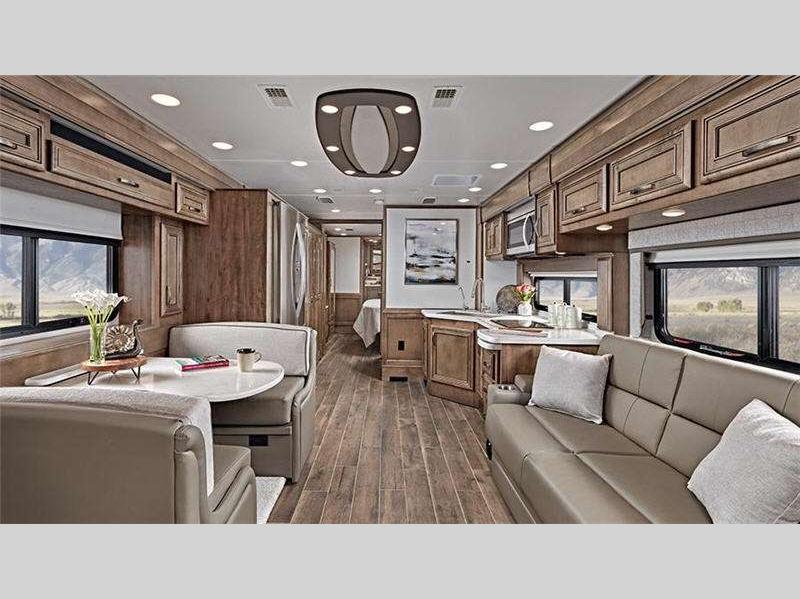

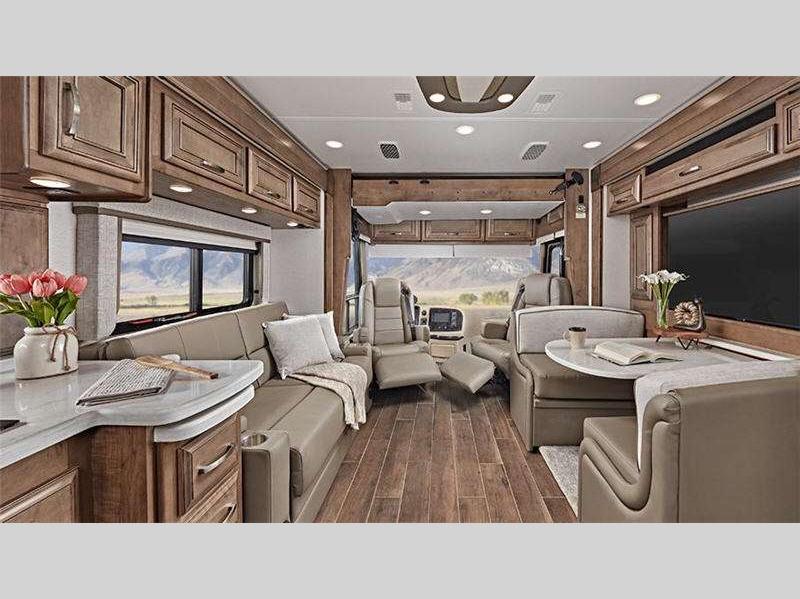

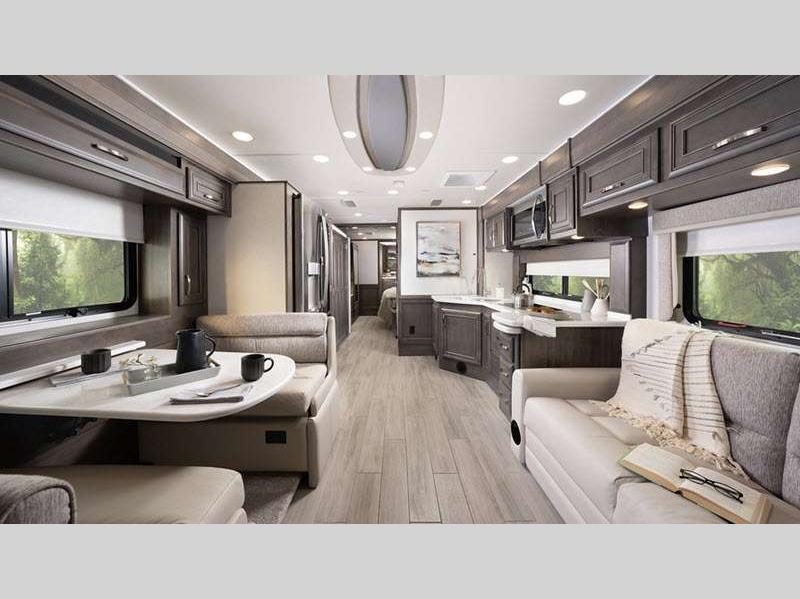

Interior

  • Manual solar day shades and blackout night shades
  • LED-lit fireplace with 5,000 BTU heating element (37K only)

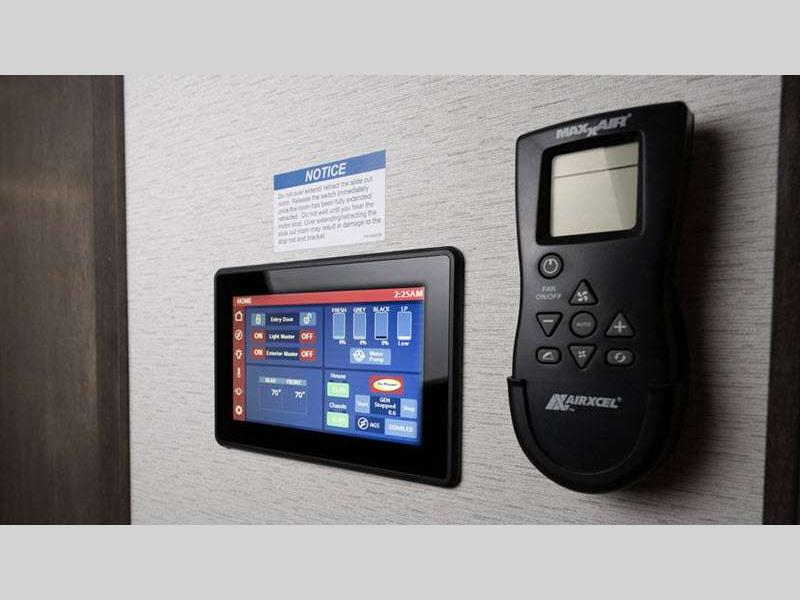

  • Firefly multiplex system with 7 in. VegaTouch touchscreen for complete integration of coach controls (mobile app available)
  • 50 in. Samsung® 4K UHD Smart TV
  • Samsung® sound bar with subwoofer
  • Sony® Blu-ray™ player

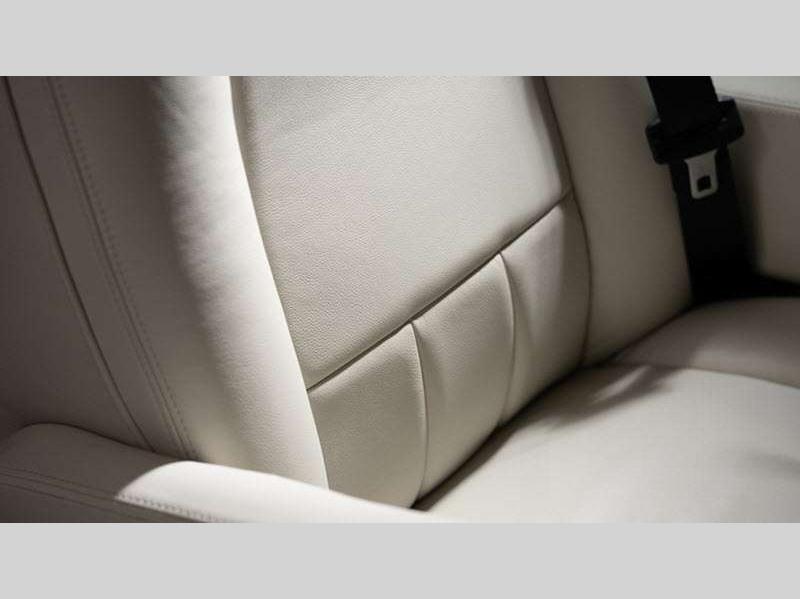

  • Premium leather furniture

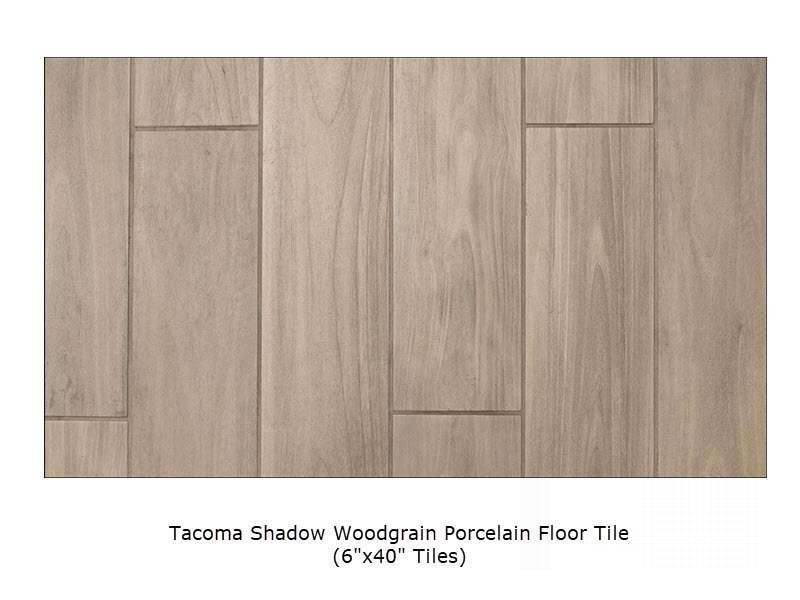

  • Hand-laid, woodgrain porcelain tiled floors
  • LED interior lighting
  • Decorative ceiling feature with integrated accent lighting

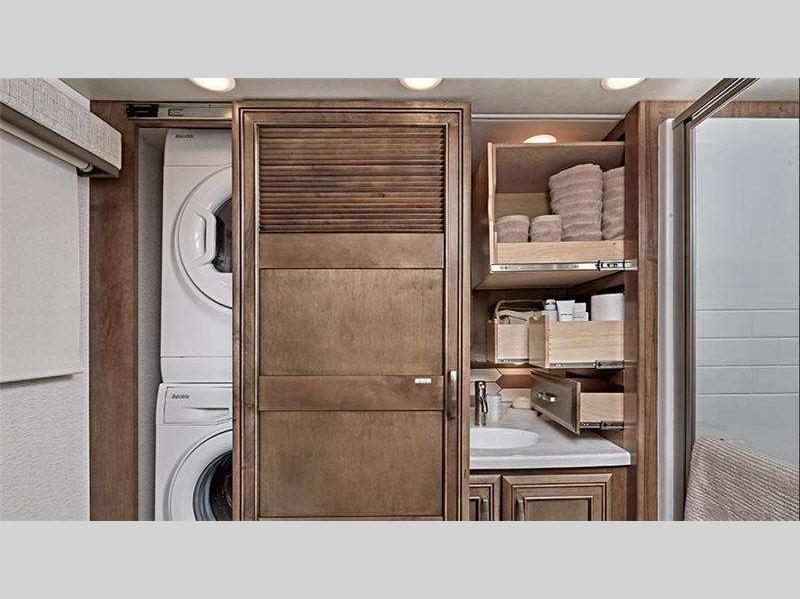

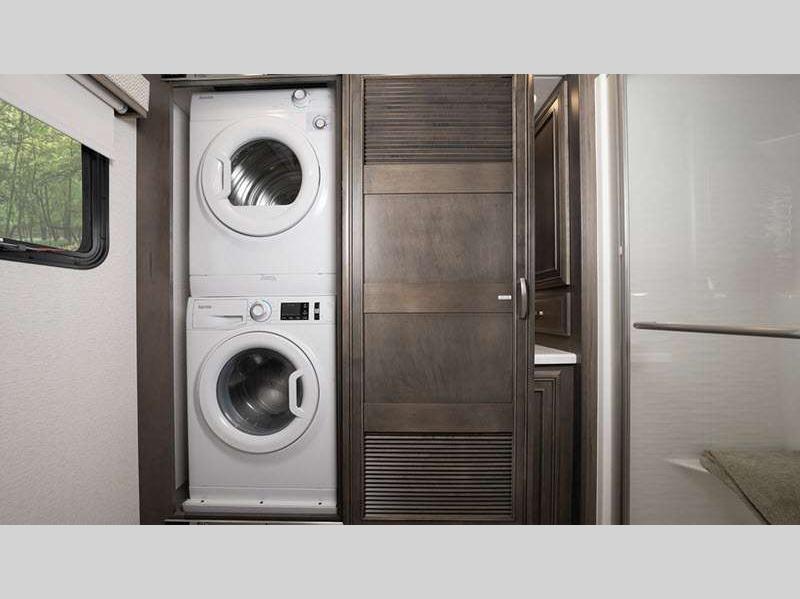

  • Splendide stackable washer and dryer

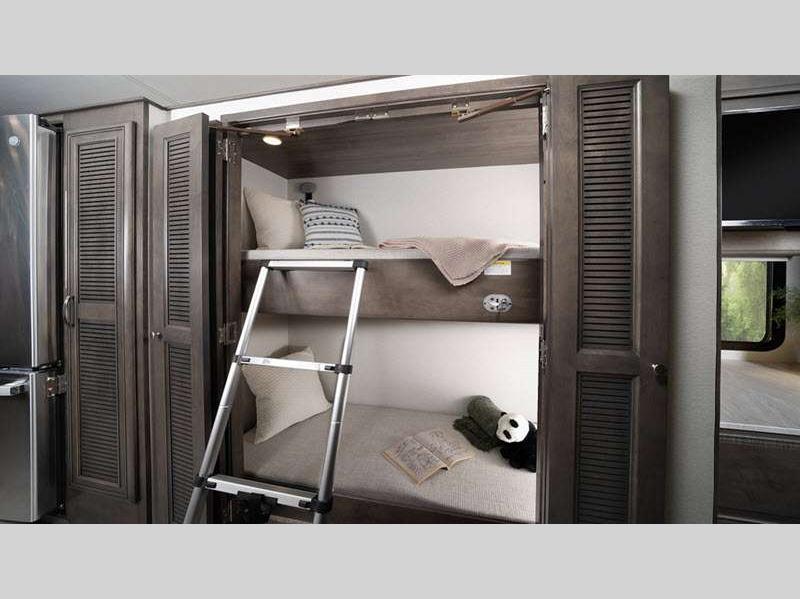

  • Bunks with industry-exclusive 300 lb. capacity each (39BH)
  • Portable Shark® vacuum cleaner

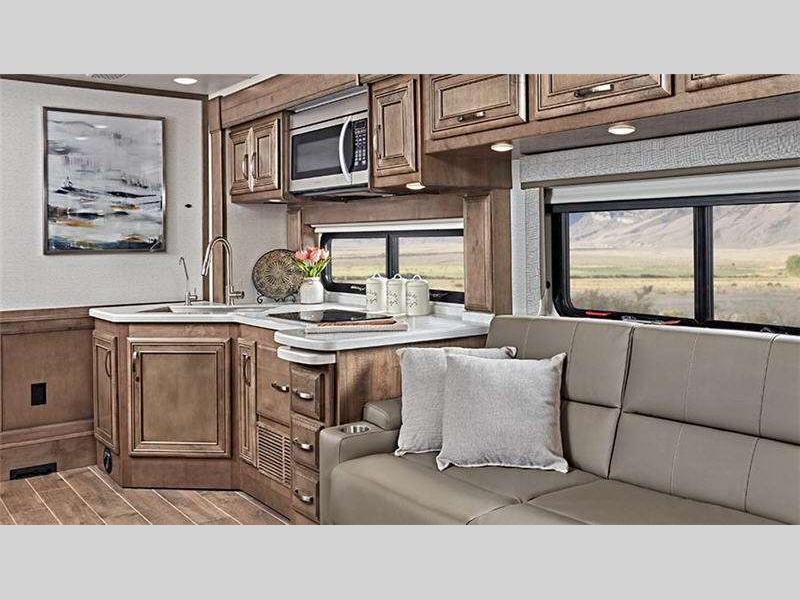

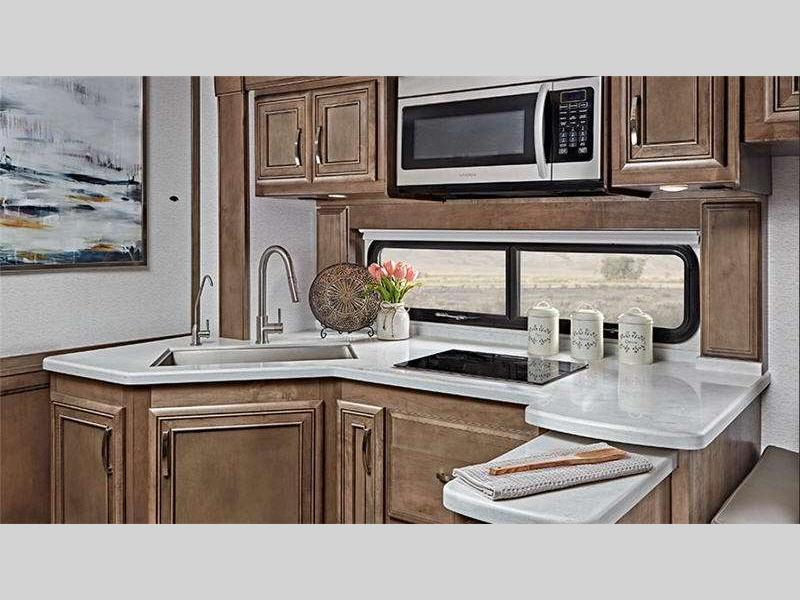

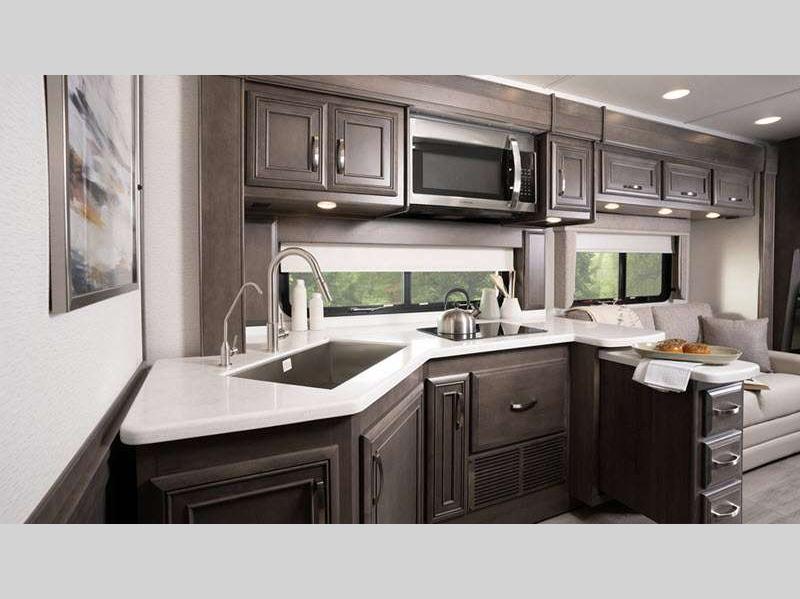

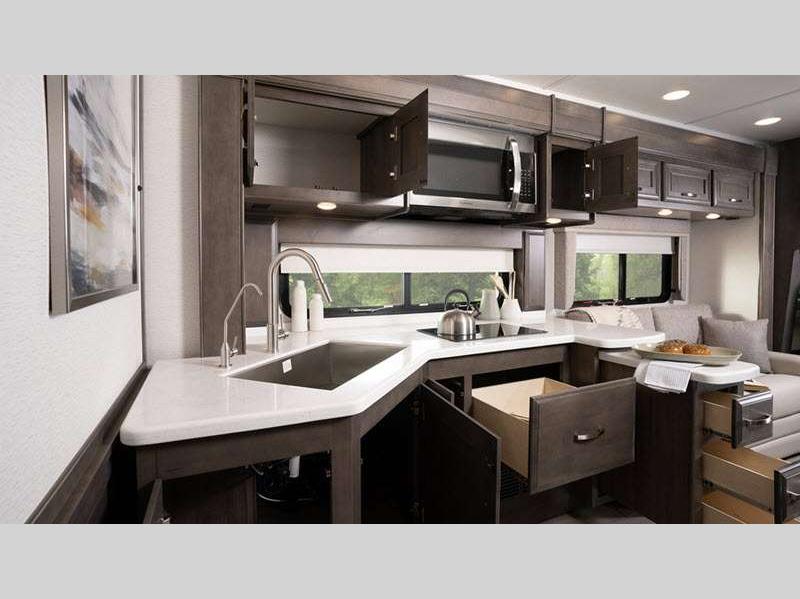

Kitchen

  • Window with push-out lever operation and screen

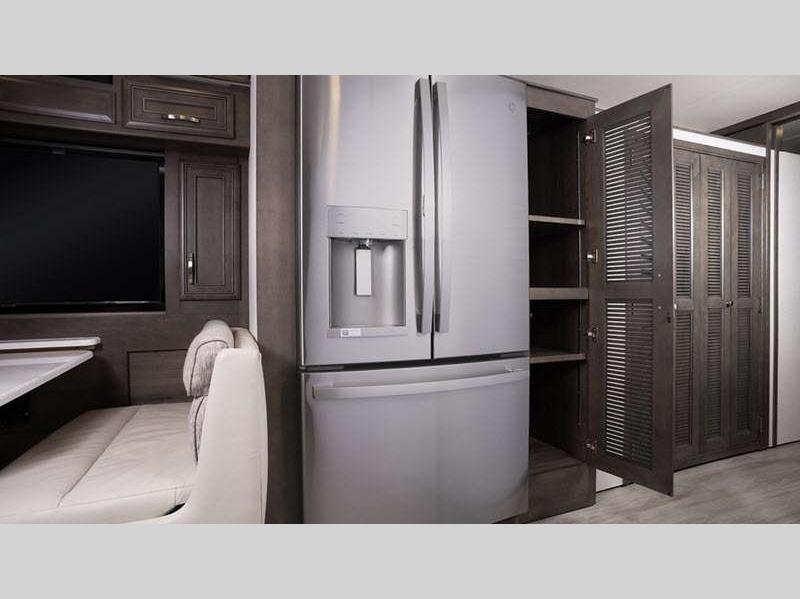

  • Stainless-steel residential refrigerator
  • Induction cooktop
  • 1.5-cu. ft. convection microwave oven
  • Solid-surface countertops with stainless steel sink
  • Filtered water dispenser at kitchen sink
  • Maxxair Deluxe power exhaust vent fan with intake in kitchen

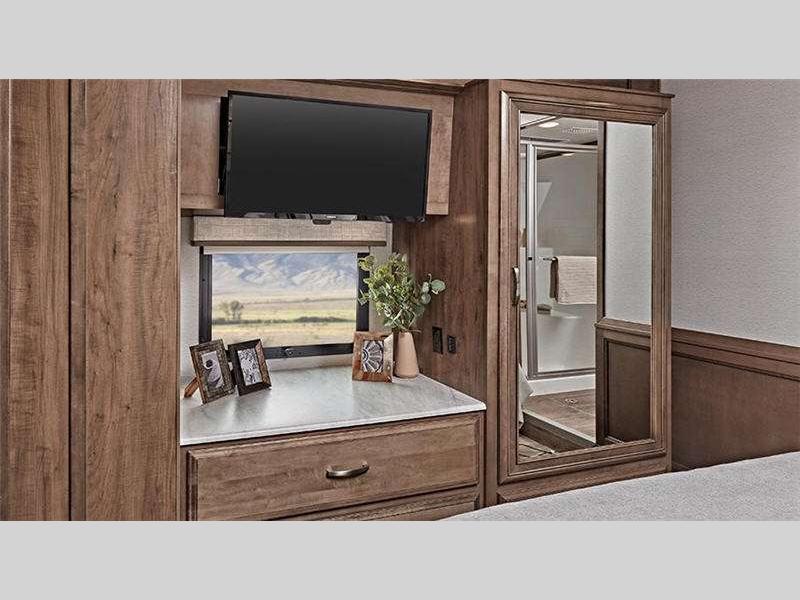

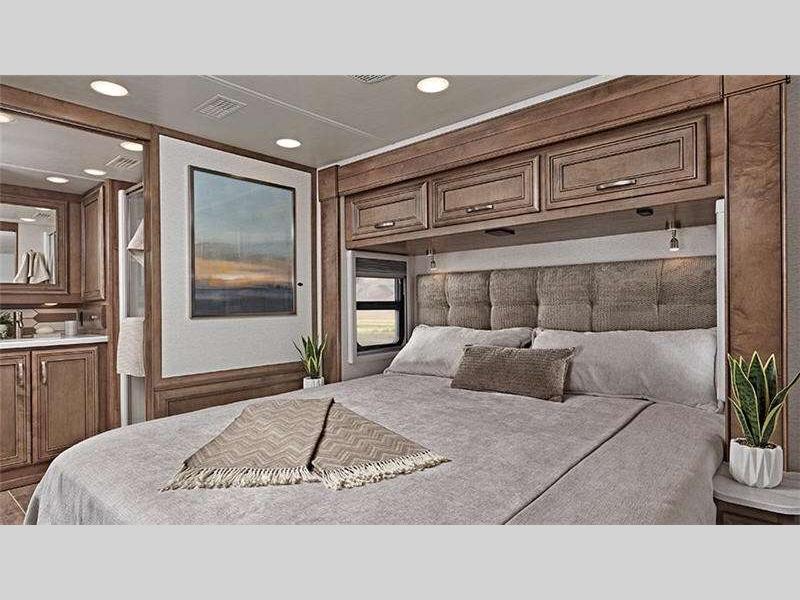

Bedroom

  • King-size pillow-top mattress on tilt bed
  • 32 in. Samsung LED 1080P Smart TV
  • Sony Blu-ray player

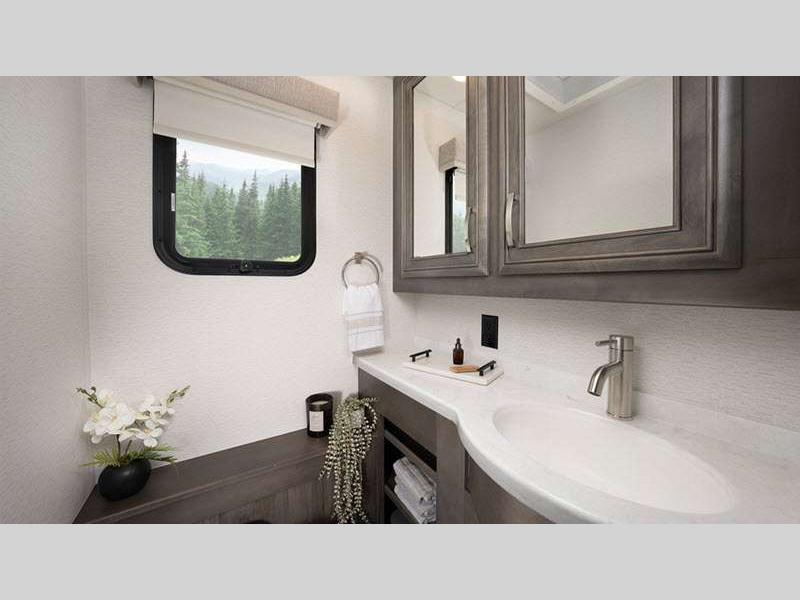

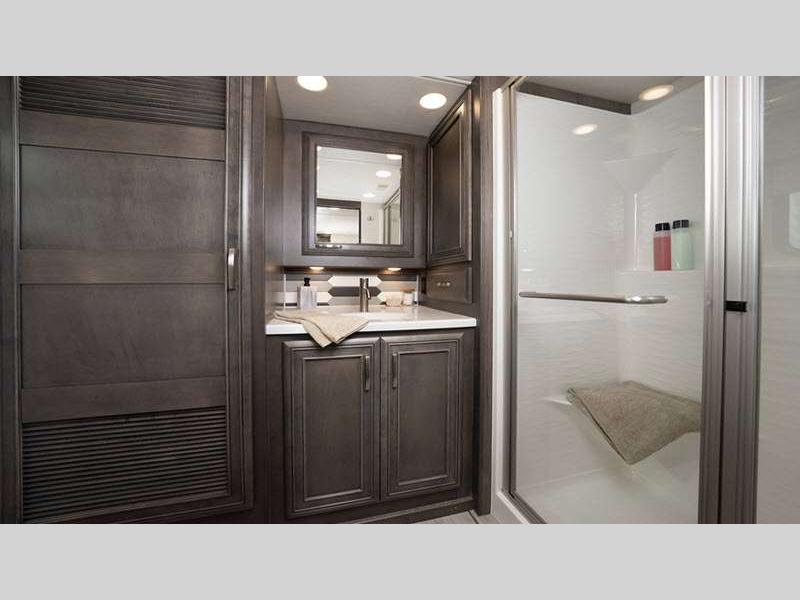

Bathroom

  • Solid-surface countertops with integrated sink
  • One-piece fiberglass shower with skylight
  • Aqua View SHOWERMI$ER™ water saving system
  • Thetford® Aqua Magic toilet with foot flush
  • Maxxair Deluxe power exhaust vent fan with intake in bathroom
  • Integrated sink

Safety

  • Combination carbon monoxide detector and LP gas alarm
  • Smoke alarm

Options

  • Theater seating with power recliners (39BH)
  • Hide-a-bed ILO power theater seating (37K)
  • Sofa ILO power theater seating (39T2)

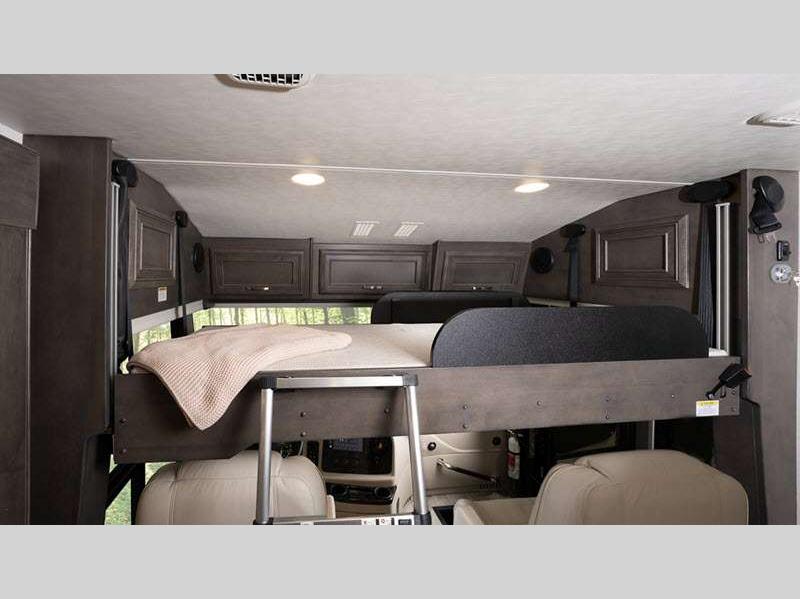

  • Power overhead bunk in cab area with 750 lb. capacity
  • Starlink satellite internet system
  • Winegard® in-motion satellite dome
  • Winegard® TRAV’LER satellite dish Dish Network®
  • Canadian standards (CSA)

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.
